IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original

IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122 For New And Original

পণ্যের বিবরণ:
পরিচিতিমুলক নাম:	IntelliVue
মডেল নম্বার:	MP2/ X2
প্রদান:
ন্যূনতম চাহিদার পরিমাণ:	1
মূল্য:	আলোচনা সাপেক্ষে
প্যাকেজিং বিবরণ:	সাধারণ প্যাকেজ
ডেলিভারি সময়:	1-2 দিন
পরিশোধের শর্ত:	টি/টি, ওয়েস্টার্ন ইউনিয়ন, পেপ্যাল
যোগানের ক্ষমতা:	30

এখন যোগাযোগ

বিস্তারিত তথ্য
পণ্যের বর্ণনা

বিস্তারিত তথ্য
রঙ:	ধূসর	মডেল নং:	MP2
স্ট্যাটাস:	নতুন অবস্থায়	শর্তাবলী:	ভাল কাজের মধ্যে
সামঞ্জস্যপূর্ণ ব্র্যান্ড:	পিএইচ	পরিবহনের মোড:	এক্সপ্রেস ডেলিভারি
শিপিং শর্তাবলী:	DHL, EMS, UPS, ACS ইত্যাদি	পণ্য:	পাওয়ার সাপ্লাই
কার্গো:	রোগী মনিটর

পণ্যের বর্ণনা

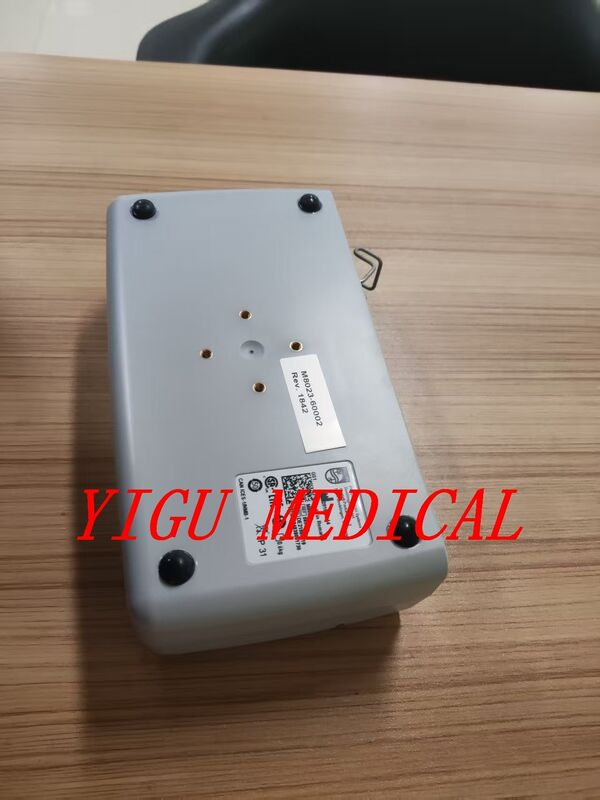

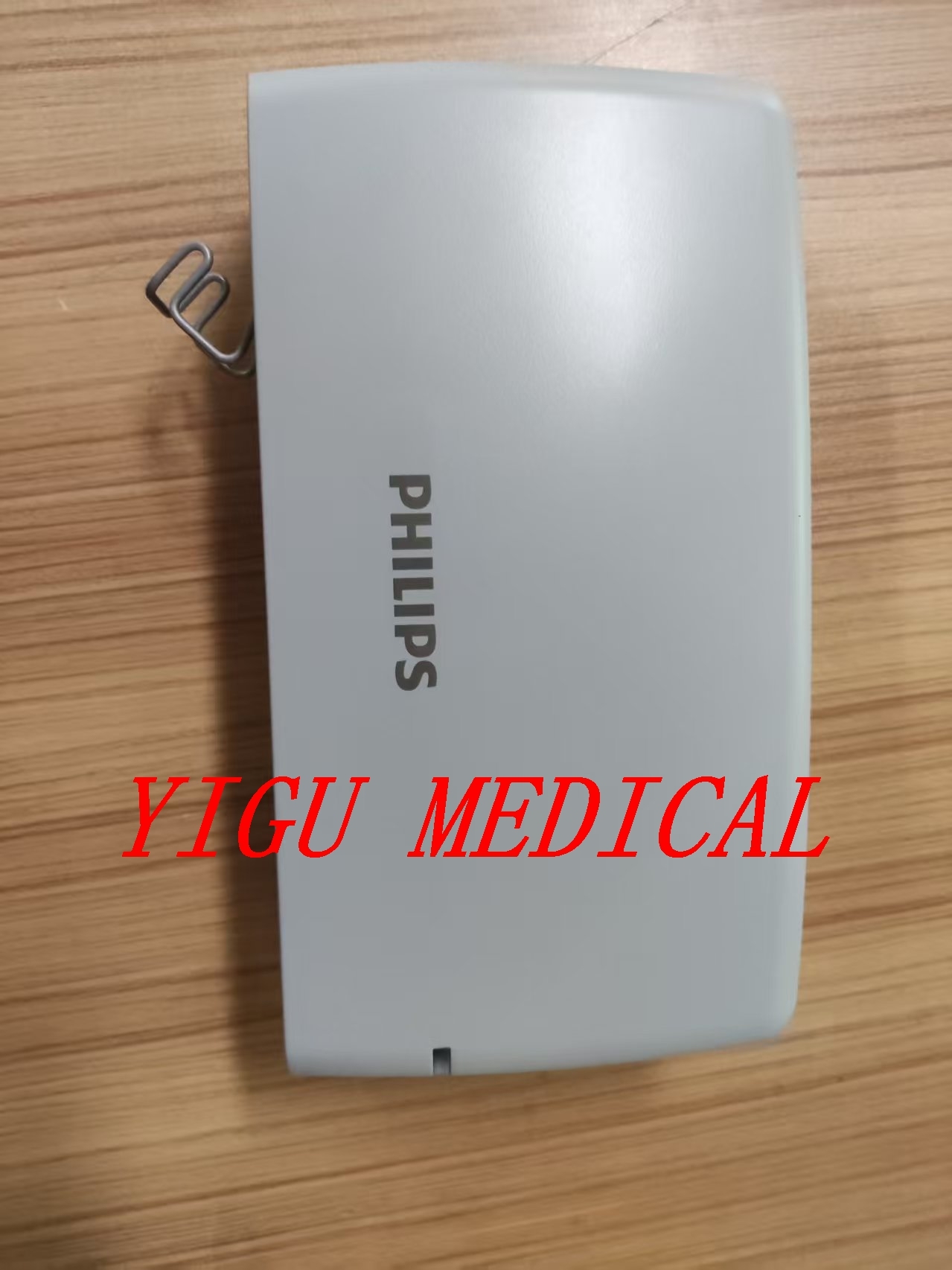

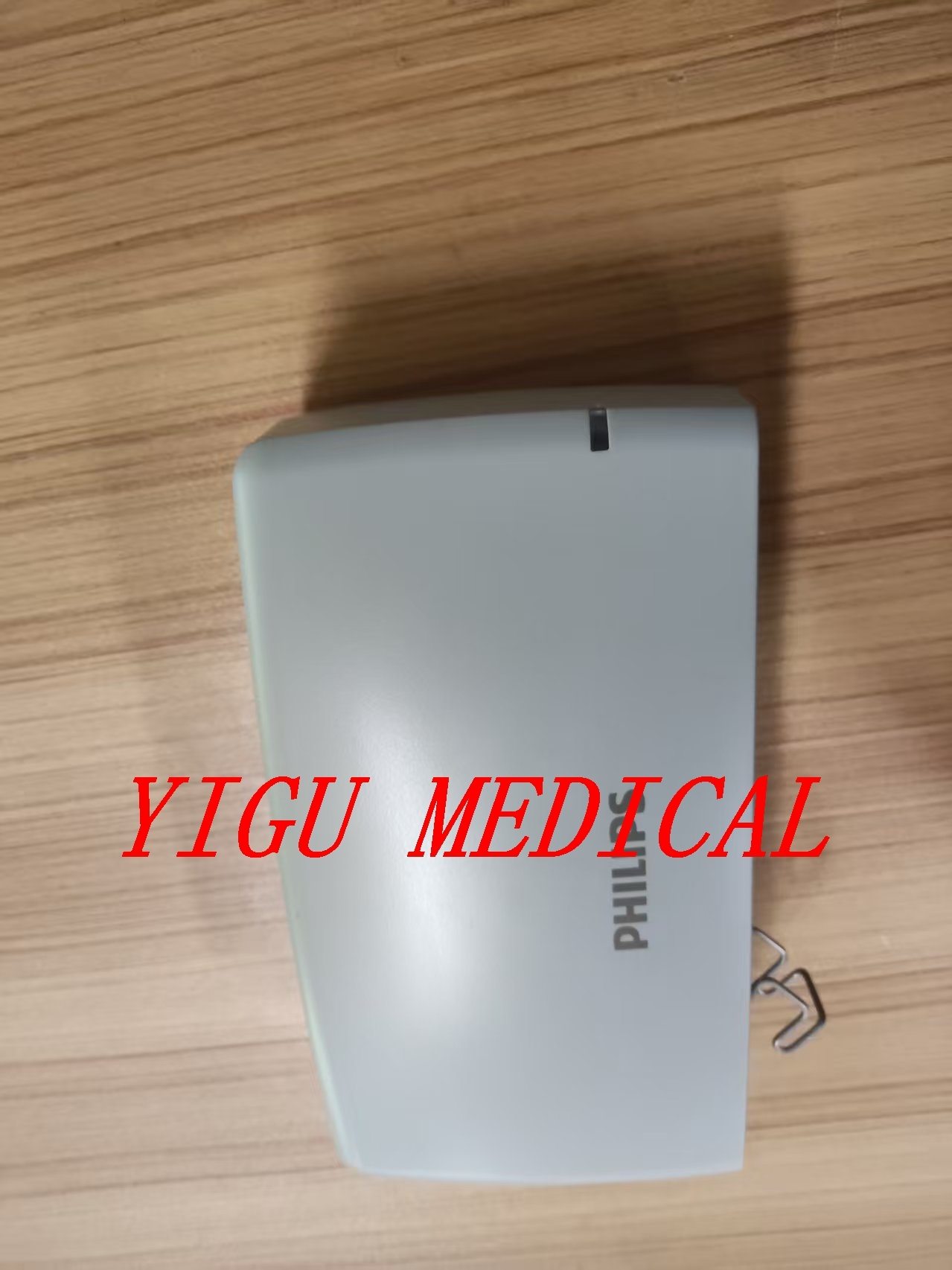

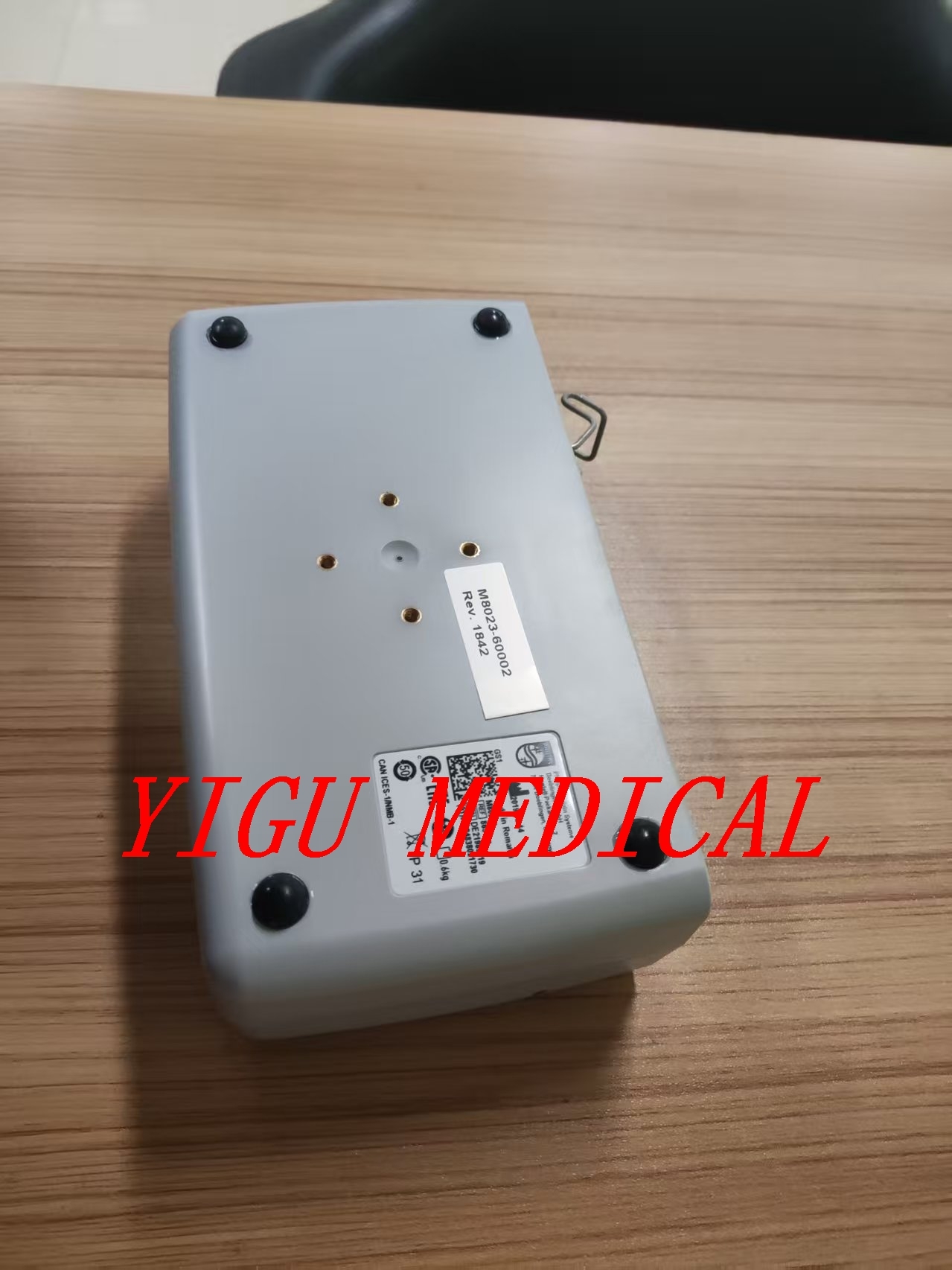

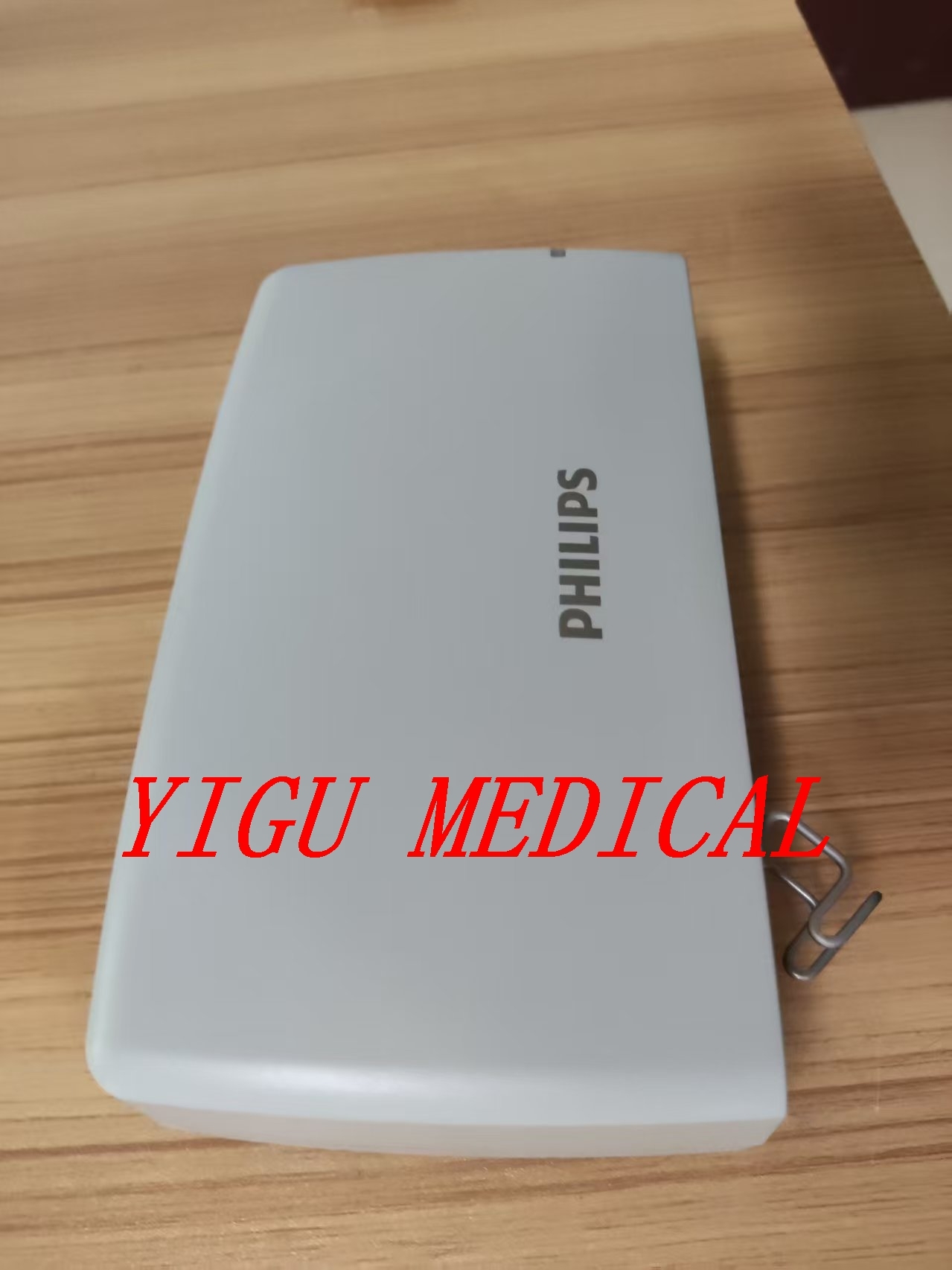

IntelliVue MP2 Monitor / X2 Module M8023A Power Supply Module REF 865122

The M8023A is a wide-range external power supply and network adapter that serves as the primary interface for connecting the MP2 monitor or X2 module to an AC mains power source. This optional accessory enables continuous operation and battery charging when the device is not connected to a host monitor.

Key Functions

Function	Description
Device Operation	Provides power to operate the MP2 or X2 from an AC power source
Battery Charging	Automatically charges the monitor's internal rechargeable Lithium-Ion battery (M4607A) when connected
LAN Connection	Provides a network connection for the device (when equipped with appropriate interface)

Technical Specifications

Parameter	Specification
Input Voltage Range	100 V to 240 V AC (±10%)
Input Frequency	50/60 Hz (±5%)
Type	Wide-range external power supply
Compatibility	IntelliVue MP2, IntelliVue X2

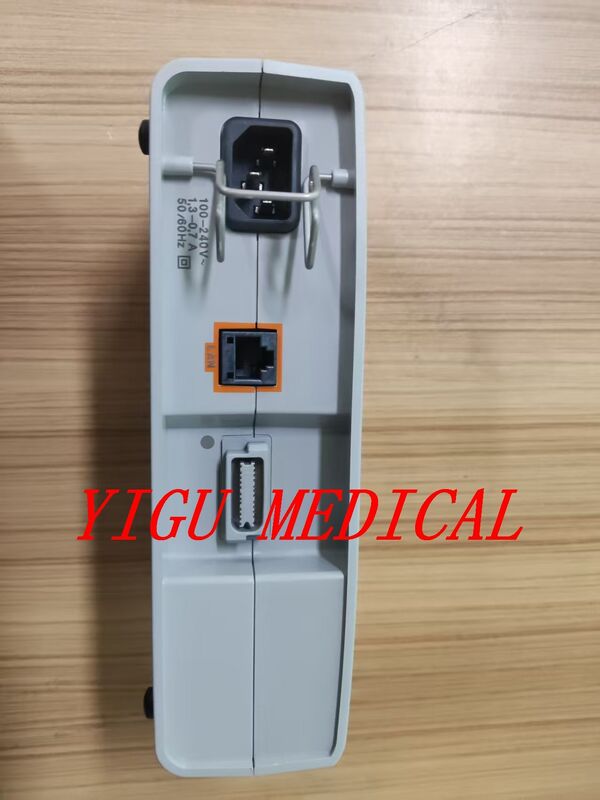

Physical Connection

The M8023A connects to the MP2 or X2 via the Measurement Link (MSL) cable—the same type of cable used to connect the device to a host monitor such as the IntelliVue MP70. This design allows the device to be powered either by a host monitor or by the standalone M8023A power supply without requiring different cables.

Operational Features

Automatic Battery Charging: When the MP2 or X2 is connected to the M8023A power supply (or to a host monitor), the internal battery recharges automatically, with no user intervention required.
Hot-Swapping Capability: Users can switch between battery-powered and mains-powered (AC) operation without interrupting monitoring. This is particularly valuable during patient transport or when transitioning between bedside and ambulatory use.
Safety Requirement for Battery Compartment: For the X2 module specifically, a battery must remain inserted in the device even when running on external power via the M8023A. The battery seals the battery compartment, preventing ingress of fluids or foreign bodies. A severe yellow INOP ("!!INSERT BATTERY") will occur if the device is connected to AC mains without a battery fully inserted.
Enables MMS Extension Measurements: When using the MP2 monitor, measurements from an MMS (Multi-Measurement Module) extension are only available when the monitor is powered by the external power supply (M8023A) or the Battery Extension—not when running on the monitor's own battery power alone.

Clinical Utility

The M8023A power supply is essential for:
